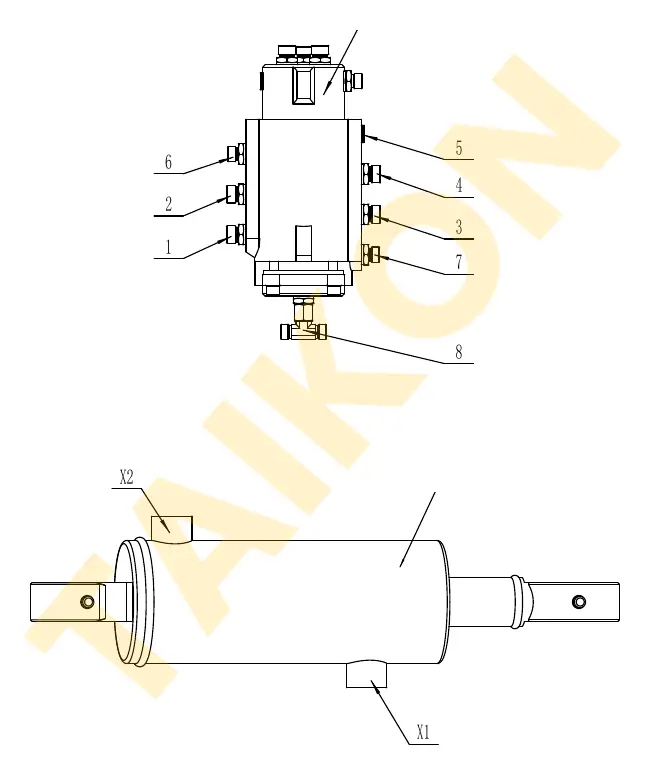

Hoses: rotary joint – dozer cylinder
5.02 · TAIKON C12
Tap a port label (e.g. B6) on the drawing to find its hose and adapters. Numbers on the drawing are hose and adapter positions from the tables below.
Hydraulic hoses
Hoses are supplied made to length. Quote the route and your machine serial number in the request comment.
| Pos. | Route | Length, mm | Hose | Ends | Qty |
|---|---|---|---|---|---|
| 1 | 6-X1 | 500 | 6I | 14H Bend / 14H Bend · V0 protective sleeve | 1 |
| 2 | 7-X2 | 620 | 6I | 14H Bend / 14H Bend · V0 protective sleeve | 1 |
Adapters
| Pos. | End A | End B |
|---|---|---|
| 1 | 5: 4BN-04 | -: - |
| 2 | 6: 1CB-14-04 | X1: 1CM-14 |
| 3 | 7: 1CB-14-04 | X2: 1CM-14 |
